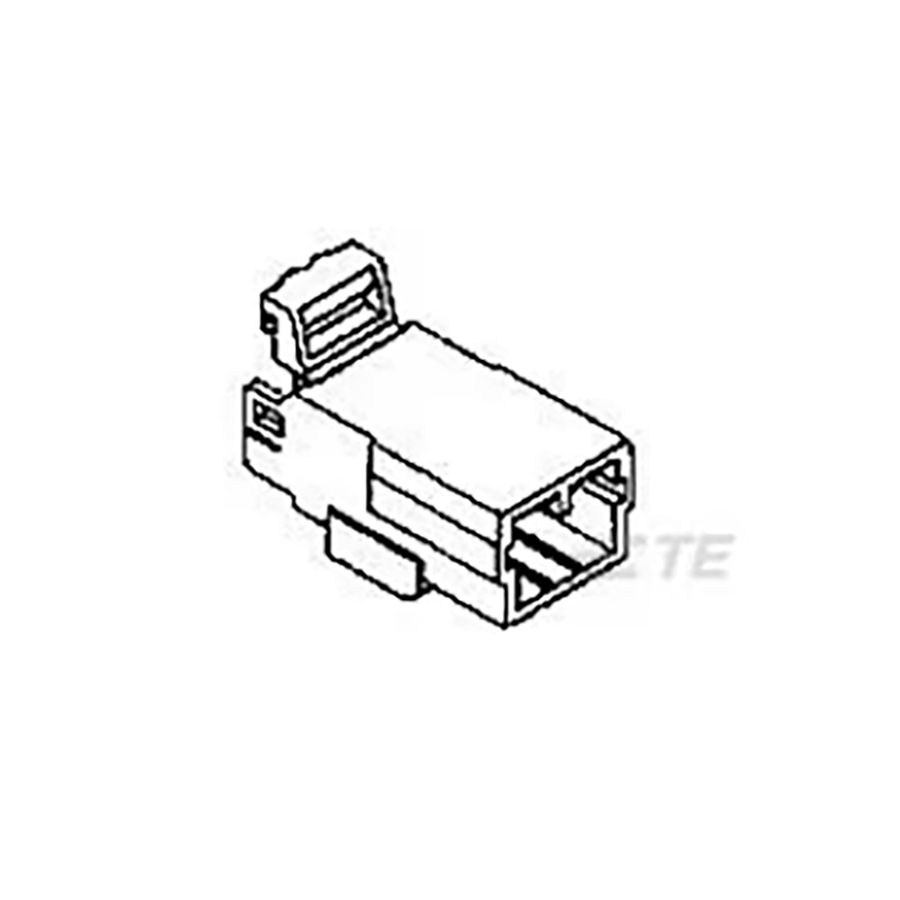

368503-1
Manufacturer:
TE Connectivity
Mfr.Part #:
368503-1
Datasheet:
Description:
Headers and Wire Housings Header Number of Positions:3 Pitch:3.5 mm
| Parameter | Value |
|---|---|
| Length | 31.4 mm |
| Width | 16.3 mm |
| Termination | Solder Pin |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -22 °C |
| Height | 18.6 mm |
| Packaging | Bulk |
| Depth | 31.4 mm |
| RoHS | Compliant |
| Pitch | 3.5 mm |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Natural |
| Gender | Female |
| ELV | Compliant |
| Connector Type | Header |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Row Spacing | 2.54 mm |
| Housing Material | Polybutylene |
| Circuit Application | Signal |
| Housing Color | Natural |
| Mating Post Length | 6.35 mm |
| Mating Tab Width | 1.8 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Termination Post Length | 2.92 mm |
Stock: 754
Distributors
pcbx
pcbxUnit Price$0.14275
Ext.Price$0.14275
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.14275 | $0.14275 |
| 10 | $0.12786 | $1.27860 |
| 50 | $0.11453 | $5.72650 |
| 100 | $0.10723 | $10.72300 |
| 500 | $0.10039 | $50.19500 |
| 1000 | $0.09399 | $93.99000 |
| 3000 | $0.08800 | $264.00000 |
| 5000 | $0.08239 | $411.95000 |
| 10000 | $0.07713 | $771.30000 |
